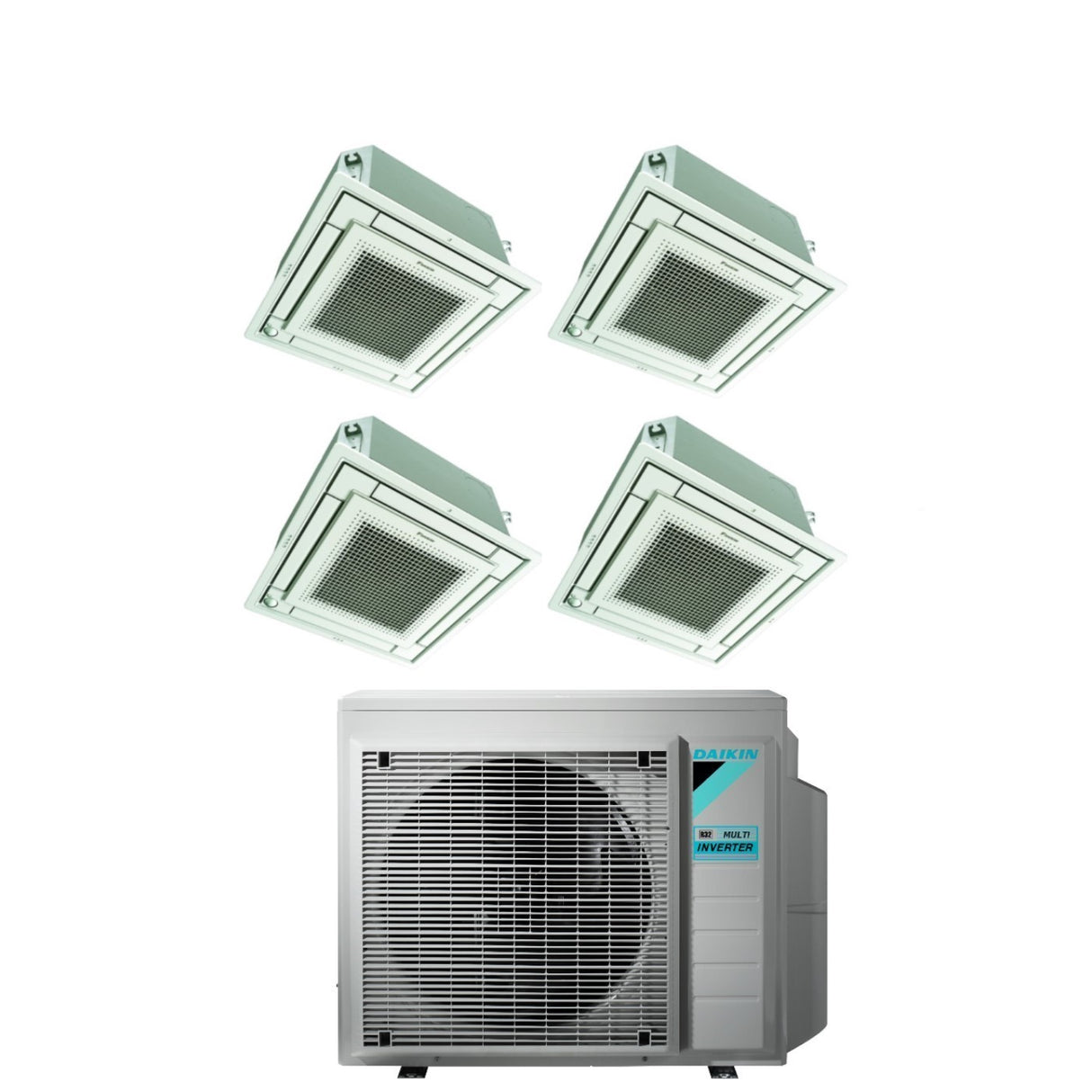

Product Description Important Note on Regulations for Fluorinated Gases IN ITALY** In accordance with Regulation (EU) No 517/2014 and Legislative Decree No 146/2018, equipment containing non-hermetically sealed fluorinated gases can only be sold if installed by a certified company. By law, every sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer guaranteeing compliance with regulations. Therefore, before completing the order, you will need to provide this mandatory declaration. Technical Specifications Indoor Units 1) Model: Indoor Unit Catalog Code: 4x FFA25A9 Power: 9000 Btu White Grid Catalog Code: BYFQ60CW Airflow: 9.0 m3/min Sound Power Level: 48 dB(A) Sound Pressure Level: 28.5 - 31 dB(A) Liquid Pipe Diameter: 6.35 mm (1/4) Gas Pipe Diameter: 9.52 mm (3/8) Indoor Unit Dimensions (HxWxD): 260x575x575 mm Indoor Unit Weight: 16 kg Panel Dimensions (HxWxD): 46x620x620 mm Panel Weight: 2.8 kg Optional Controls: Wi-Fi Module: BRP069A81 White Wired Controller: BRC1H519W Silver Modoka Wired Controller: BRC1H519S Black Modoka Wired Controller: BRC1H519K Infrared Remote Control: BRC7F530W/S Outdoor Unit Outdoor Unit Catalog Code: 4MXM80A Maximum number of connectable indoor units: 4 Energy Efficiency SEER: 7.77 SCOP: 4.68 Cooling Energy Efficiency Class: A+++ Heating Energy Efficiency Class: A++ Performance Cooling Capacity: 7.40 kW Heating Capacity: 9.60 kW Cooling Power Consumption: 2.21 kW Heating Power Consumption: 2.25 kW Cooling Sound Power Level: 61 dB(A) Heating Sound Power Level: 61 dB(A) Cooling Sound Pressure Level: 49 dB(A) Heating Sound Pressure Level: 49 dB(A) Electrical Data Power Supply (V/Hz/Ph): 220~240/50/1 Refrigerant: R-32 Guaranteed Temperature Range: - Cooling: -10° ~ 46° C - Heating: -15° ~ 18° C Installation Data Liquid Pipe Diameter: 6.35 mm (1/4) x4 Gas Pipe Diameter: 9.52 mm (3/8) x4 Maximum Pipe Length: 70 m Maximum Height Difference between Indoor and Outdoor Units: 15 m Dimensions and Weight Outdoor Unit Dimensions (HxWxD): 734x974x408 mm Outdoor Unit Weight: 67.0 kg Kizuna Warranty 2+2 Daikin Italia’s warranty can be activated within 1 month from the purchase date at https://standbyme.daikin.it/it/ Superior Efficiency Multi-Split Systems The new Multi-Split range includes 8 outdoor units with 2 to 5 connections, with a power range from 4 to 9 kW, combinable with Daikin indoor units. Designed with high-efficiency refrigerants and compressors that ensure optimal performance, all the Multi-Split units allow cutting consumption by up to 80%. All Bluevolution multisplits are in the A+++/A+++ class. All of this in even more compact sizes. Compared to the previous range, significant improvements have also been achieved in terms of silence. It is possible to connect up to five indoor units to a single multi-outdoor unit. The ideal solution to meet the needs of those who want to heat and cool multiple rooms. Daikin Bluevolution redefines market standards for efficiency, silence, pure air, and consumption control, with special attention to environmental impact. Experience the well-being of the future Choosing Daikin for your home means simply choosing the best. Today, Daikin has taken the concept of comfort to a whole new level, reinventing the environment thanks to its Bluevolution range. By choosing Daikin technologies, you can have the maximum efficiency, silence, and pure air. The high levels of seasonal efficiency guarantee the best atmosphere both in summer and winter, minimizing consumption. The new refrigerant R-32 is more eco-friendly than standard refrigerants. Daikins extensive experience and wide range of products offered are synonymous with reliability and long-lasting systems for your home. And even when youre not at home, you can control and adjust the room temperature and operating mode via a smartphone app that is incredibly easy to use. Let Daikin guide you in creating the perfect atmosphere. Is your air conditioner more than 10/15 years old? Discover the benefits of replacing it with a new Daikin Bluevolution. Here are the main benefits: Reduced consumption by half, saving on energy costs. In this way, you help the environment and your wallet Absolute silence with a product that is 10 decibels quieter, practically imperceptible: for sleeping, listening to music, and studying without any disturbance 4-year warranty, the free 2-year extension of the Daikin Kizuna warranty will be reserved for the new residential BLUEVOLUTION range Pure air thanks to the patented Flash StreamerTM system, to remove dust, pollen, mites, mold, and many other allergens; even bad odors, viruses, and bacteria New design with products designed to make the air conditioner a furnishing element. Why choose Daikin? Seasonal efficiency in heating and cooling Creating a pleasant climate in your home is not just a matter of comfort. Daikin systems are also environmentally and budget-friendly. Daikins advanced energy-saving technologies ensure high levels of seasonal efficiency in both heating and cooling, up to A+++ class. Consider that a product in class A+++ is up to 40% more efficient than a product in class A++. Seasonal efficiency is a new way of classifying heating and cooling products based on their energy efficiency throughout the year. R-32 More Efficiency and Eco-Friendly Daikin uses R-32, a refrigerant that results in lower CO2 emissions. This means that the units have a lower global warming potential and, overall, are more efficient. All for the benefit of the environment! Extreme Silence Noisy units are now a thing of the past. Daikin systems are so quiet that they are imperceptible. You can read, study, and sleep without any background noise. App Control Not at home? Thanks to the Daikin Onecta app, this is no longer a problem. You can easily adjust the indoor temperature, airflow, and operating mode of your Daikin system from your device, wherever and whenever you want. Plus, you can monitor energy consumption, managing your climate responsibly. Daikin FFA-A Cassettes Unique design on the market that allows perfectly flush installation in the ceiling Features Perfectly flush integration with standard ceiling panels, leaving only 8 mm Unique combination of design and technology, with elegant finishes in white or silver and white The combination with Bluevolution R-32 technology reduces the environmental impact by 68% compared to R-410A systems, results in direct energy consumption reduction due to high energy efficiency, and has a lower refrigerant charge - up to 16% less Two optional intelligent sensors improve energy efficiency and comfort Individual deflector control: flexibility to adapt to the internal layout of any room without moving the unit! Unified range of indoor units for R-32 and R-410A Reduced energy consumption thanks to the small-diameter tube heat exchanger, DC fan motor, and specially designed condensate drain pump Optional external air intake The branch discharge allows optimized air distribution in irregularly shaped rooms or provides air to small adjacent rooms The standard condensate drain pump with a 630mm head increases flexibility and installation speed Onecta App Full control, wherever you are Not at home? Thanks to the Onecta app, this is not a problem. The app allows instant access to all functions. You can easily adjust the Daikin Emura settings via smartphone, anywhere and anytime. Control all the functions of your Daikin Emura air conditioner Create different programs and operating modes Monitor energy consumption on a daily, weekly, or annual basis Identify the room in your home to easily control the different units Simply connect to the WLAN and download the Onecta app to start creating the perfect climate for your home. The Onecta app allows you to connect Daikin to the Wi-Fi network and control the air conditioning system from anywhere using Apple or Android devices. Even when you are not at home, you can turn on, turn off, set the cooling or heating operation, adjust the room temperature, and the air flow of the air conditioner. Its very simple Voice Control To further increase comfort and convenience, the Daikin Onecta app - Residential Controller is now available with voice control. The ability to control the application hands-free reduces the necessary clicks and allows for faster unit management than ever before. Transversal and multilingual, voice control can be combined with smart speakers like Google Assistant and Amazon Alexa Always Connected Unit The unit can be managed through the new Daikin Onecta app - Residential Controller and is compatible with Amazon Alexa and Google Home voice assistants. Wi-Fi connection is ensured by the integrated SD card in the unit Programming Set a program to define the operating hours of the system and create up to six different actions per day Program the room temperature and operating mode Activate the vacation mode to save on energy costs Monitoring Get a complete overview of system performance and energy consumption Check the system status Access energy consumption graphs (daily, weekly, monthly) Control Customize the system according to your lifestyle and comfort needs throughout the year Change the room temperature Activate the Powerful mode to enhance operation The availability of functions depends on the type of system, configuration, and operating mode. App functionalities are available only if both the Daikin system and the app use a reliable internet connection Product Warranty: All products sold on our website are new and packaged. The warranty on this item is 24 months from the date of purchase. Technical Data weight: 110.0 kg brand: Daikin model: FFA-A 9+9+9+9 80
